Complete Guide to Aluminum Fabrication Equipment: From CNC Machining Centers to Profile Lines

An Aluminum CNC Machining Center boosts profile accuracy by combining a rigid frame, servo-driven linear motion, a 24,000 rpm spindle with ATC, and real-time compensation. On profile lines, this cuts re-clamps, holds tight tolerances in long runs, and reduces setup time from ~30 minutes to ~5.

Aluminum sits in a sweet spot: light, strong enough for real work, friendly to cutting tools, and good-looking after finishing. That mix is why factories use it for door and window systems, heat sinks, rail, lighting frames, and a long list of industrial parts. Choosing the right aluminum fabrication equipment is what separates a tidy, repeatable process from a shop that wrestles with burrs, noise, and rework. This guide walks through the core gear—from CNC machining centers to full profile production lines—and shows how each piece improves accuracy, speed, and consistency.

Why Aluminum for Fabrication? Key Benefits

Aluminum is often the first pick for profile-based products. The reasons are practical, not hype.

• High strength-to-weight: Rigid frames without dead weight.

• Formability: Easy to mill, drill, slot, and tap with the right parameters.

• Corrosion resistance: Great for outdoor façades and transport components.

• Thermal conductivity: Vital for heat sinks and LED housings.

• Surface-friendly: Takes anodizing, powder coat, or brushing well.

As a material, it behaves nicely—until the setup slips. That’s where proper equipment and process control matter most.

Equipment Landscape for Aluminum Fabrication

A balanced setup blends flexibility with output. Here’s a quick map of the common equipment you’ll see in modern aluminum profile production.

A “one machine does all” plan rarely holds up. The best plants fit tools to volume, mix, and tolerance targets—then grow into automation as orders scale.

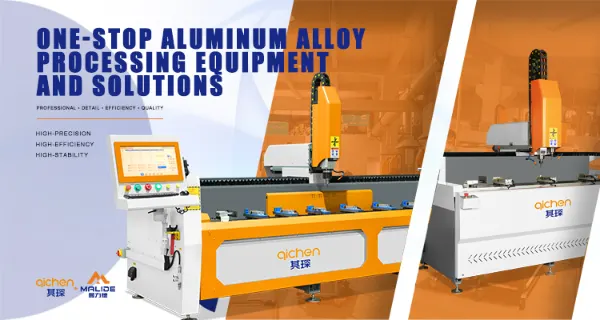

CNC Machining Centers for Aluminum Profiles

Among all categories, the aluminum CNC machining center often makes the biggest difference. It pulls several steps into one setup and quietly removes the little variables that wreck accuracy.

Core Components That Drive Accuracy

• Rigid frame/gantry: A heavy, well-stiffened structure cuts vibration. Less shake equals smoother walls and straighter holes.

• Linear guides + ball screws: Tight motion control, less backlash, and balanced feed help maintain true position along 3 m (and longer) profiles.

• Servo systems: Stable acceleration and speed keep chip load even. You hear it in the cut; it sounds calm, not harsh.

• High-speed spindle + ATC: A 24,000 rpm spindle paired with an automatic tool changer handles drilling, end milling, and slotting without re-clamping.

• Clever fixturing: Proper clamps and reference stops prevent slip during heavy passes. Small detail, big gain.

• Thermal and tool compensation: Digital offsets correct tiny drifts as parts and tools warm up.

Common Reasons for Poor Aluminum Profile Machining Precision

When accuracy drops, it’s usually not one villain—more like two or three at once. Below are the typical reasons for poor aluminum profile machining precision and what actually helps.

If you build your process to remove these variables up front, accuracy becomes repeatable, not lucky.

Process Integration on Profile Lines

Profile work shines when you chain steps together. A basic flow looks like this:

1. Input & identification: Barcodes or labels tie parts to programs.

2. Cut-to-length: Automated saw cuts blanks with consistent faces.

3. CNC machining center: One setup for holes, slots, and end features.

4. Inline quality checks: Simple gauges or sensors catch drift early.

5. Surface finishing: Anodize or powder coat as needed.

6. Final assembly or kitting: Clean parts, ready for the next station.

The more you reduce re-clamping and manual measuring, the more stable your tolerances. That’s not a theory; it’s what day-to-day production shows.

Surface Finishing Options and Dimensional Notes

Finishing brings looks and protection. It can also nudge dimensions, so plan for it.

Tiny changes add up. For press-fit or sliding fits, run a test batch with finishing included.

Best Practices: Accuracy, Throughput, Cost

You don’t need magic. You need habits that work on busy days too.

• Tool choice: Use sharp carbide with proper coatings for aluminum. Keep a simple life rule: if the cut sounds wrong, check the edge.

• Coolant/air strategy: Chip evacuation beats rubbing. Dry air blast or mist works well when speeds are high.

• Fixturing: Use hard locators, equal clamp pressure, and stops that are easy to clean. Chips under a stop are sneaky.

• Calibration rhythm: Quick checks weekly; full calibration every six months (or quarterly for 24/7 plants).

• Shop temperature: Aim for a steady 18–26 °C. Steel, aluminum, and even granite tables move with heat.

• Program libraries: Store proven paths for common profiles; small tweaks beat writing from scratch every time.

• In-process checks: Measure first-off, mid-batch, last-off. Simple forms keep people honest and batches stable.

Choosing the Right Setup: CNC Center vs Profile Line

Not every plant needs a full line. Use volume, complexity, and changeover frequency to decide.

A common path is start with one good CNC machining center, then add drilling units or conveyors, and finally link into a semi-automated line once orders grow. Crawl, walk, run—no shame in that.

Practical Gains You Can Feel

Numbers matter. So does the day-to-day feel on the shop floor.

• Setup time: Manual fixtures can eat 30 minutes. A solid CNC program and standard clamps cut that to ~5 minutes.

• Finish: Smooth walls and clean edges reduce deburring time; thin profiles keep their shape.

• Scrap: One-setup machining drops rework and scrap rates. Over a month, that’s real metal and real money saved.

• Repeatability: With good care, a modern system can hold tight tolerances across long runs. That reliability builds trust with customers fast.

Here’s a quick head-to-head snapshot:

Maintenance Habits That Keep Accuracy High

Small routines pay out big.

• Daily cleaning: Clear chips from covers and rails.

• Weekly lube: Oil ball screws; check way covers.

• Tool life: Track edges by parts or minutes, not “gut feel” alone.

• Alignment checks: Quick tests on Mondays; full checks on schedule.

• Logbook: Note odd noises, warm motors, or repeat alarms. Patterns tell stories.

Keep it simple. Keep it steady. That’s how accuracy lasts.

Buying Considerations for Early-Stage Teams

When SEO and inbound are just starting, budgets usually are, too. A few tips:

• Prioritize the spindle + motion system. That pair anchors accuracy.

• Pick controls your team can program. Fancy is nice; usable is better.

• Plan for fixturing. Good clamps make average programs look great.

• Leave room to automate. A cart now; a small conveyor later.

• Ask for a sample run. Your profile, your holes, your slots—one quick video says more than ten brochures.

Trends That Will Matter Next

A few shifts are already landing on shop floors:

• Multi-axis on longer profiles: More features without flipping parts.

• Tool life prediction: Simple sensors plus software cut surprise burrs.

• Digital twins (lightweight): Simpler previews that spot clamp collisions before they happen.

• Inline measurement: Gauging right after machining, not at a distant bench.

• Data crumbs, not data lakes: Basic counters and alerts that people actually use.

No need to chase buzzwords. Add tools that make today’s jobs easier and tomorrow’s batches steadier.

Foshan Malide Intelligent Equipment Co., Ltd. supplies aluminum profile fabrication equipment—Aluminum CNC Machining Centers, drilling/milling units, cutting systems, and profile lines. The team focuses on rigid structures, stable motion control, and operator-friendly programs to hold tight tolerances in long runs. Services include commissioning, training, fast support, and practical process advice (fixturing, tool paths, finishing allowances) to help new lines reach steady cycle times quickly.

FAQs

Q1 What equipment is most critical in aluminum profile fabrication?
A: For multi-operation work, a CNC machining center is the core. It handles drilling, milling, and tapping in one setup. Pair it with a reliable cutting saw and, as orders grow, add drilling units or a profile line for flow.

Q2 How do I reduce scrap and rework on long extrusions?
A: Use one-setup machining with solid fixturing, keep tool edges fresh, and add simple in-process checks. Stable feed and thermal compensation also help cut size drift.

Q3 What’s the best way to handle reasons for poor aluminum profile machining precision?
A: Tackle the root causes: vibration, uneven feed, tool wear, and thermal growth. A rigid structure, tuned servo motion, auto tool measurement, and shop temperature control work well together.

Q4 Do I need a full profile production line right away?
A: Not usually. Start with a good aluminum CNC machining center, prove your parts, then scale into a semi-automated line when volume and SKU stability justify it.

Q5 Will finishing processes affect my dimensions?
A: Yes. Anodizing and powder coat can add thickness or change edge feel. Run a test batch and mask critical faces to keep fits tight after finishing.
